Arrow setup for 31" draw length

Codyws128

Newbie
Joined
Jun 3, 2022
Messages
5
Location
West River
Hello, Ive been getting lots of info from rokslide these last few years and decided to finally make an account. I just recently purchased a Mathews v3x 33 and im not too sure about my arrow setup. my draw length is 31 inches. the arrow build im looking at is a Easton axis 260 spine cut at 31" or align with the riser an ironwill 125 gr 50 gr brass insert a 17 gr collar. i have slight concerns with this setup from what im seeing ill be under spined. i try to be around 12% foc. assuming with that setup my speeds will be right around 274-280 fps. im also considering black eagle rampage. if there's any recommendations let me know! Thank you.


Attachments

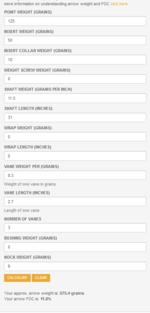

  • Screenshot 2022-06-09 173901.png
    Screenshot 2022-06-09 173901.png
    26.6 KB · Views: 22
Last edited:

Rob5589

Well Known Rokslider
Joined
Sep 6, 2014
Messages
5,138
Location
W Sac CA
Sounds in the ballpark. I'd guess you could shorten the shaft by a couple inches, unless you want a 31" arrow.

OP
Codyws128

Codyws128

Newbie
Joined
Jun 3, 2022
Messages
5
Location
West River
Sounds in the ballpark. I'd guess you could shorten the shaft by a couple inches, unless you want a 31" arrow.
I havent checked what the length of the arrow should be typically like the tip of the shaft align with the riser with a fixed head.


Rob5589

Well Known Rokslider
Joined
Sep 6, 2014
Messages
5,138
Location
W Sac CA
I mean you can. I haven't done that since using drop away rests. Do what you're comfortable with.


Mighty Mouse

Well Known Rokslider
Joined
Jun 21, 2019
Messages
1,570
Location
Oklahoma
That sounds like a good setup to me. qSpine says your planned arrow is near perfect on spine.

Bow inputs: 336 fps IBO, 70# DW, 31" DL, 33" ATA, 6.5" BH, 85% LO
Arrow inputs: 31" C2C, 125 gr head, 50 gr insert, 17 gr collar, 9 gr nock, 3 vanes at 8.3 gr/ea

OP
Codyws128

Codyws128

Newbie
Joined
Jun 3, 2022
Messages
5
Location
West River
That sounds like a good setup to me. qSpine says your planned arrow is near perfect on spine.

Bow inputs: 336 fps IBO, 70# DW, 31" DL, 33" ATA, 6.5" BH, 85% LO
Arrow inputs: 31" C2C, 125 gr head, 50 gr insert, 17 gr collar, 9 gr nock, 3 vanes at 8.3 gr/ea
View attachment 418326
Your awesome! thank you. ill have to look at purchasing that app.


Marble

Well Known Rokslider
Joined
May 29, 2019
Messages
2,380
Since your asking opinions.

I would cut the arrow down to 29.5ish depending on your rest.

Use a standard hit insert and drop the 50 grain brass piece. Maybe use a BAR from easton instead of the collar and you'll be right around 510 TAW.

Sent from my SM-G986U using Tapatalk


summs

Junior Member
Joined
Jul 29, 2021
Messages
32
Location
Nj
I have a 32" draw length, with a drop away rest behind the riser, I have my arrows cut 1/2 inch past the rest at full draw.

I'm shooting fmj 250's at 70lbs with 125 magnus stingers, stock inserts. Overall arrow is a hair over 500 grains. Getting slung by a mathews traverse. Which reminds me, my bottom cam timing is off and I need to adjust that before fall shooting prep starts next month.


brn2hnt

Well Known Rokslider
Joined
Feb 27, 2012
Messages
354
Location
Treasure Valley, ID
I have a very similar setup, 30.5" draw with grip removed. Shooting (for now) easton axis 260's, 90gr inserts, and 125 gr heads. 589 total weight, shooting in the low-mid 260's

Spine has been peachy for me, but I cut my arrows to a hair over 29" carbon to carbon. This has been totally fine with a drop away rest, even shooting 1 1/4" fixed heads.

That being said, I'm wanting to switch to a lighted nock this year, so I may scrap this arrow setup entirely for a lighter gpi so that I can keep my foc at a reasonable %
