Tikka Base Recoil Pin

[ajbailey21]

Hey Guys - all over the place trying to get exactly what I want for mounting my NXS.

I bought a pair of NF rings and a NF standard duty base yesterday. The NF base does not have any recoil pin. I assume NF wouldn’t put anything out that won’t stand up to abuse but a few of the bases have the pin and it does bring some piece of mind. Should I get an Area419 or something like that or stick with the NF?

Thanks for the thoughts.


Sent from my iPhone using Tapatalk



[HandgunHTR]

To be perfectly honest with you, if you can get your $ back out of them, I would ditch both the base and rings and order a set of these to use:

UM Tikka Rings - Unknown Munitions

These rings attach directly to the Tikka Dovetail on the top of every Tikka action, no need for a rail (scope base)! Each package comes with: 2 Scope Rings, 9/64″ Driver Bit, Blue Thread Locker, 2 x threaded reoil pins, 2 standard recoil pins. Made from 6061 aluminum and Type 3 Hardcoat Anodize...

www.unknownmunitions.com

I use those, Sportsmatch (harder to get), and Mountain Tactical Raptor mounts on my Tikkas (current 6 of them). But it will be UM rings for all future builds.

If you can't get your $ back, then just roll with NF base and rings.



[ajbailey21]

To be perfectly honest with you, if you can get your $ back out of them, I would ditch both the base and rings and order a set of these to use:

UM Tikka Rings - Unknown Munitions

These rings attach directly to the Tikka Dovetail on the top of every Tikka action, no need for a rail (scope base)! Each package comes with: 2 Scope Rings, 9/64″ Driver Bit, Blue Thread Locker, 2 x threaded reoil pins, 2 standard recoil pins. Made from 6061 aluminum and Type 3 Hardcoat Anodize...

www.unknownmunitions.com

I use those, Sportsmatch (harder to get), and Mountain Tactical Raptor mounts on my Tikkas (current 6 of them). But it will be UM rings for all future builds.

Thanks. I have some of those on order too. As I said, I’m all over the place. I’m going to give them a shot when they get here, but due to the short length on my NXS I think they are going to be over the ejection port for proper eye relief. Which I’m not crazy about. So I’m trying to get some options together to try out and send back what I don’t want.


Sent from my iPhone using Tapatalk



[sdupontjr]

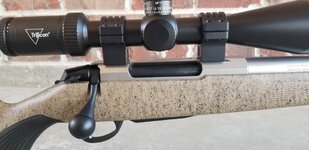

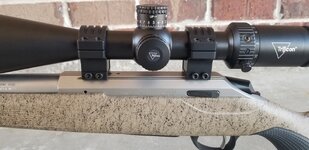

As mentioned UM rings.


I also use a mountain tactical rail that has the recoil pin in it for my other Tikka.



[ajbailey21]

As mentioned UM rings.
View attachment 646085View attachment 646086

I also use a mountain tactical rail that has the recoil pin in it for my other Tikka.
View attachment 646087View attachment 646088View attachment 646089View attachment 646090

Thanks. How important is the recoil pin in your opinion?


Sent from my iPhone using Tapatalk



[eightyeight mag]

What caliber???
My 338 mag and 300wsm tikkas have recoil lugs on rails for peace of mind. 308 and below not to worried.
Murphy precision, Area419, and mountain tactical all utilize recoil lugs.



[ajbailey21]

What caliber???
My 338 mag and 300wsm tikkas have recoil lugs on rails for peace of mind. 308 and below not to worried.
Murphy precision, Area419, and mountain tactical all utilize recoil lugs.

7 PRC


Sent from my iPhone using Tapatalk



[Formidilosus]

Hey Guys - all over the place trying to get exactly what I want for mounting my NXS.

I bought a pair of NF rings and a NF standard duty base yesterday. The NF base does not have any recoil pin. I assume NF wouldn’t put anything out that won’t stand up to abuse but a few of the bases have the pin and it does bring some piece of mind. Should I get an Area419 or something like that or stick with the NF?

Thanks for the thoughts.

The UM Tikka rings are the way.

If you are going to use a rail, @Salmon River Solutions is making a very low profile 20moa rail with pin.

This was the prototype-




It’s the rail to use.



[eightyeight mag]

7 PRC


Sent from my iPhone using Tapatalk

Id go with the area 419 rail. Lightweight and no sharp edges.
Just my .02



[mxgsfmdpx]

UM Tikka rings.

I have 4 sets in rifles now. They’re the bees knees.



[BBob]

Murphy Precision Tikka rails come with the pin.

Tikka T3x Picatinny Style Scope Base

Premium scope base for Tikka T3x rifles. Picatinny style scope mount in Stainless Steel or Titanium, 100% Made in America

www.murphyprecision.com



[roosiebull]

Thanks. I have some of those on order too. As I said, I’m all over the place. I’m going to give them a shot when they get here, but due to the short length on my NXS I think they are going to be over the ejection port for proper eye relief. Which I’m not crazy about. So I’m trying to get some options together to try out and send back what I don’t want.


Sent from my iPhone using Tapatalk

You should watch the YouTube video that UM put out for mounting a scope with their rings… he’s mounting an NX8 which also has a very short mounting surface

I just mounted a NXS 2.5-10 with their rings a couple weeks ago and have no issues with ejection, but their video will give you a good visual comparison with what you’re doing



[ajbailey21]

You should watch the YouTube video that UM put out for mounting a scope with their rings… he’s mounting an NX8 which also has a very short mounting surface

I just mounted a NXS 2.5-10 with their rings a couple weeks ago and have no issues with ejection, but their video will give you a good visual comparison with what you’re doing

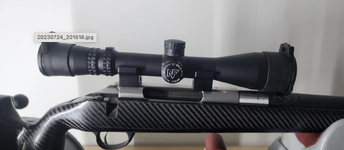

Thanks. I've seen it, also seen a few pictures on the big UM thread like below. I'm sure it will work fine...will see once they get here. I like the idea of them and have seen all the rave reviews, but I also like the idea of getting a pic base on there and having all kinds of flexibility. As I said, I'm all over the place! I'm building my 'dream' rifle and trying to get it just how I want it.



[ajbailey21]

The UM Tikka rings are the way.

If you are going to use a rail, @Salmon River Solutions is making a very low profile 20moa rail with pin.

This was the prototype-

View attachment 646112


It’s the rail to use.

Thanks, Form. I've seen all of your work on them. I've got them ordered and will see how everything works out once they get here.



[sdupontjr]

Thanks. How important is the recoil pin in your opinion?


Sent from my iPhone using Tapatalk

Depends on what you want.

I used a browning Abolt II medallion 7mag for about 30 years with just simple dove tail mounts held with 4 screws and not one time did I have an issue. Being it was offered for the tikka, I picked up the rail and set my 308 up for low light with the Polar.

Since buying the CTR, I pulled the rail and tried the UM rings. The clamping force is legit with these. They having larger screws than the sportsmatch thus you can apply more clamping force to the tikka rail. So really both work well. I'm just not a fan of the ring of the UM or sportsmatch falling in the action port. It's simply a look for me.



[ajbailey21]

Depends on what you want.

I used a browning Abolt II medallion 7mag for about 30 years with just simple dove tail mounts held with 4 screws and not one time did I have an issue. Being it was offered for the tikka, I picked up the rail and set my 308 up for low light with the Polar.

Since buying the CTR, I pulled the rail and tried the UM rings. The clamping force is legit with these. They having larger screws than the sportsmatch thus you can apply more clamping force to the tikka rail. So really both work well. I'm just not a fan of the ring of the UM or sportsmatch falling in the action port. It's simply a look for me.

I agree with this. I’m sure it’s functional, but something just doesn’t feel or look right about it to me…


Sent from my iPhone using Tapatalk



[ajbailey21]

The UM Tikka rings are the way.

If you are going to use a rail, @Salmon River Solutions is making a very low profile 20moa rail with pin.

This was the prototype-

View attachment 646112


It’s the rail to use.

Sorry, one more question for you. I value your opinion, if you were going to do a rail is a recoil pin a must have or will be fine without it?


Sent from my iPhone using Tapatalk



[Formidilosus]

Sorry, one more question for you. I value your opinion, if you were going to do a rail is a recoil pin a must have or will be fine without it?


Sent from my iPhone using Tapatalk

“Must” is relative. It’s really failure probability. Being that having a recoil pin costs nothing, and yet does increase durability, reliability, and stability- yes, to me it is a requirement.

Having said that, if adding can’t to the scope isn’t an absolute requirement, the UM rings are the best mounting system on the market for Tikkas. Adding a rail on top of a rail, and adding screws doesn’t increase reliability. It’s a Tikka- choosing a compromise in function for “looks” is not the way.



[TNKnoxville]

So I should get the low UM rings for a 50 mm scope and my Roughtech Tikka?????



[Pharmseller]

I like the milled Talleys that fit over the dovetail.

Almost impossible to find these days.
